If you are installing an Arial for your Ranger WildTrack, Everest, XLT Ute or other models, you will need a mounting bracket.

Mounting brackets directly mounted to one side under the bonnet will damage your paintwork. It may also damage the cable due to bonnet movement as there is only a 4mm gap. If mounted under the bonnet hinge you need to undo it, then realign your bonnet, it will move the arial when opening or closing.

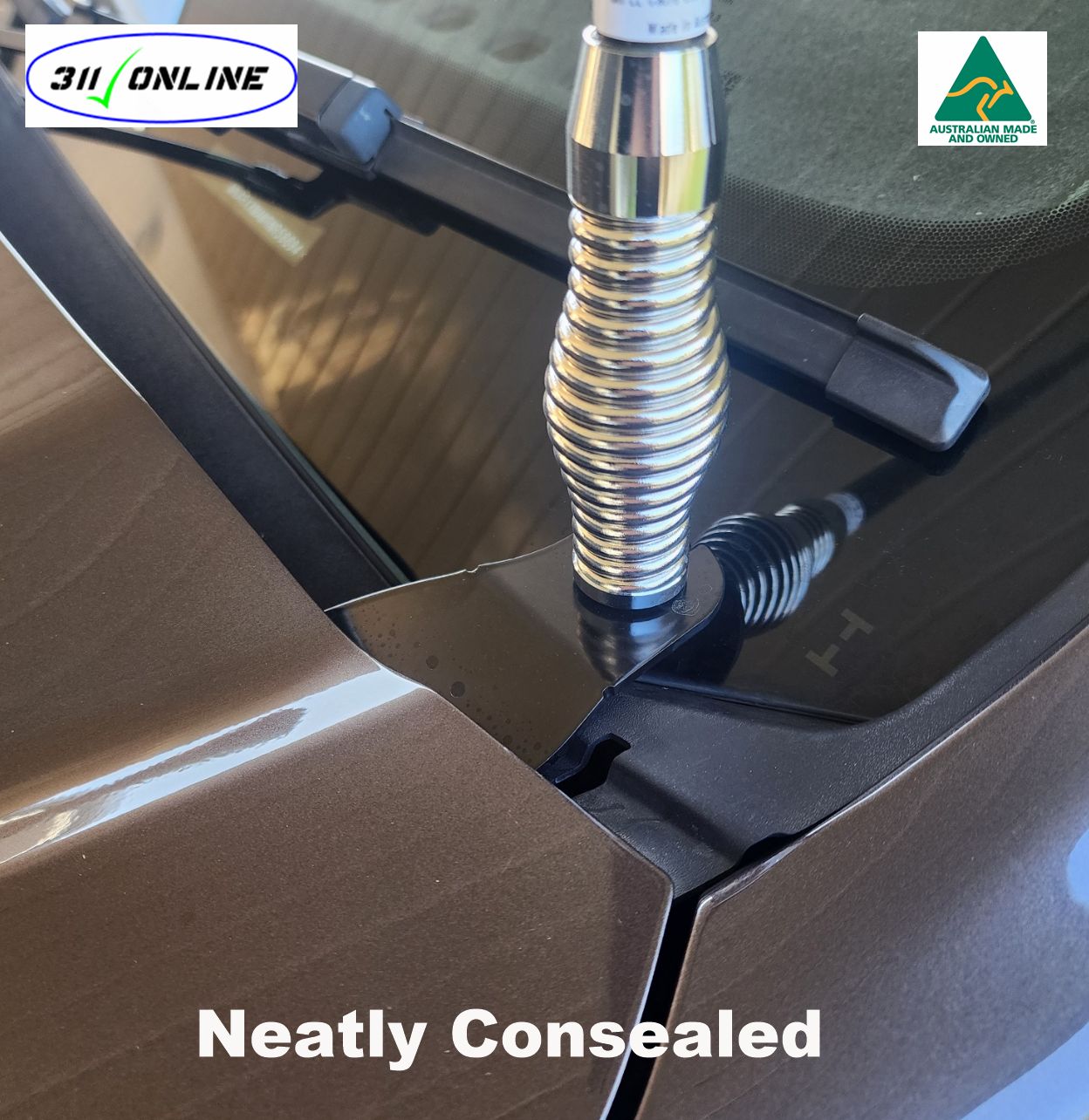

We have a better solution. The bracket we make here in Australia mounts directly inside the engine bay and works up to the right location. There is no drilling of holes required on your part. We have supplied the right bolts and foam protection for this bracket. There are two cable tie-down locations to control the cable leading into the engine bay. The product is Powder Coated satin black and is suited for a 14mm entry Arial. It locks into place nicely and the Arial stays in place when opening the bonnet. There is limited room for the Arial, it is not suited for extra-large Arial's the one shown on the picture listing is the maximum all others should be placed on your bull bar.

Fitting is extremely easy. Choose the right mount to suit your arial as some Arial's are 16mm. Mount the arial to the bracket. place the bracket and arial as an assembly into the engine bay and mount it making sure the mount is straight to the inside location. The small M5 with Nylock we have supplied fits on the driver's side and the M6 we have supplied fits on the passenger side. Lock them up and you're ready to go.
